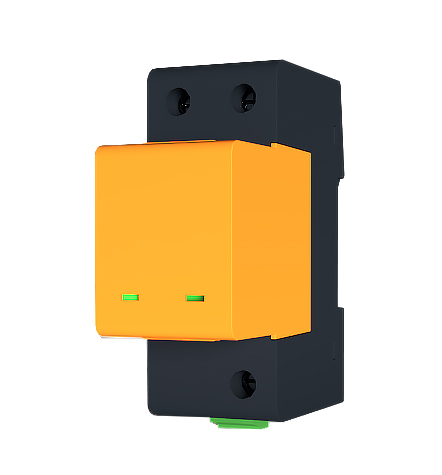

BG Series
For AC High Energy System
Patented Tripping Mechanism
Network Configurations: 2 /1+1 Jumper/ 3 / 4 / 3+1 Jumper
Core Element: MOV33D+ GDT/ MOV42S+ GDT
Surge(T1+T2): 60/120kA(8/20us) / 25.0kA*(10/350us)
Surge(T2): 80/150kA(8/20us)
Types: 241k / 431k / 711k

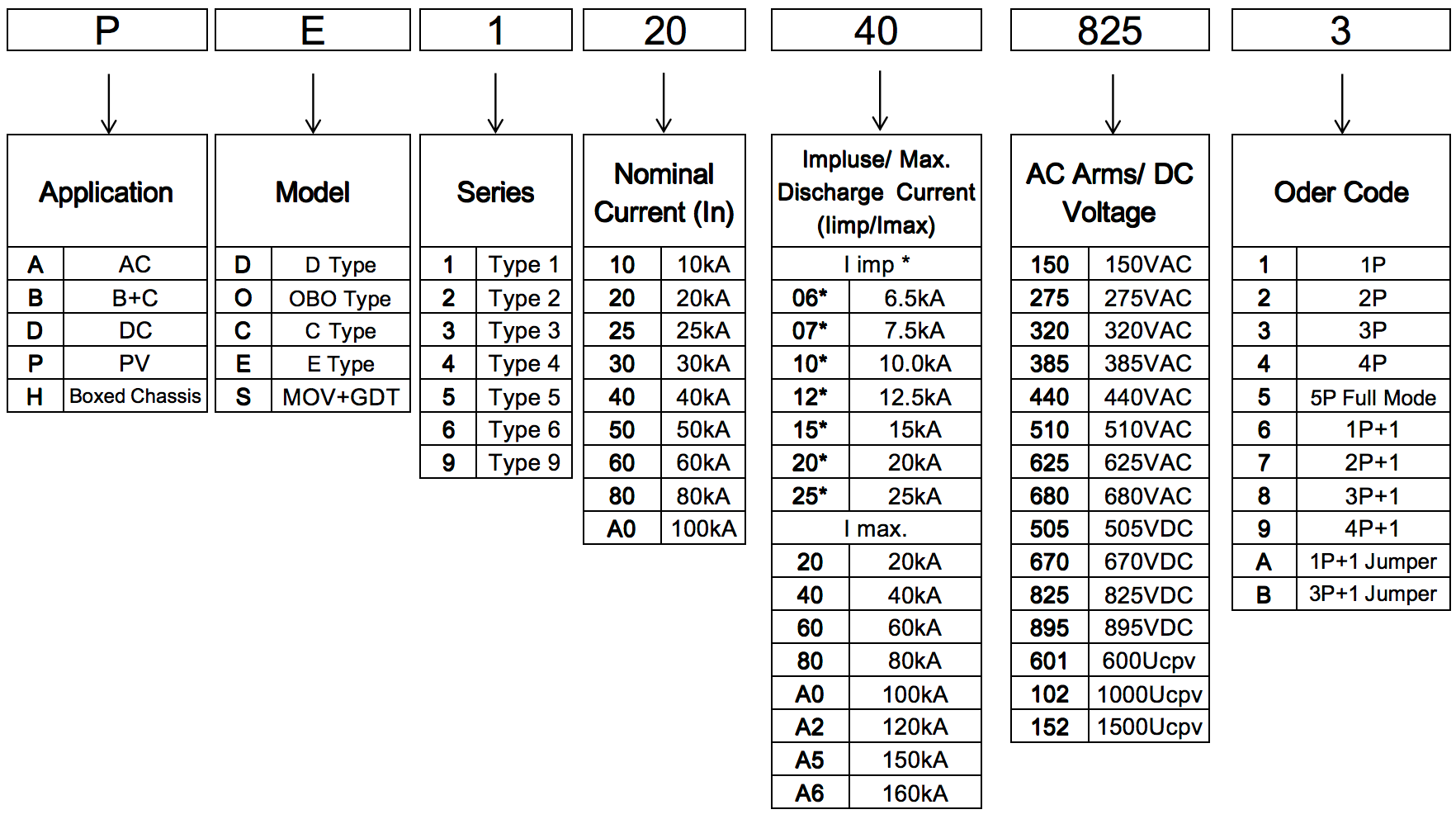

1. Part Number Code

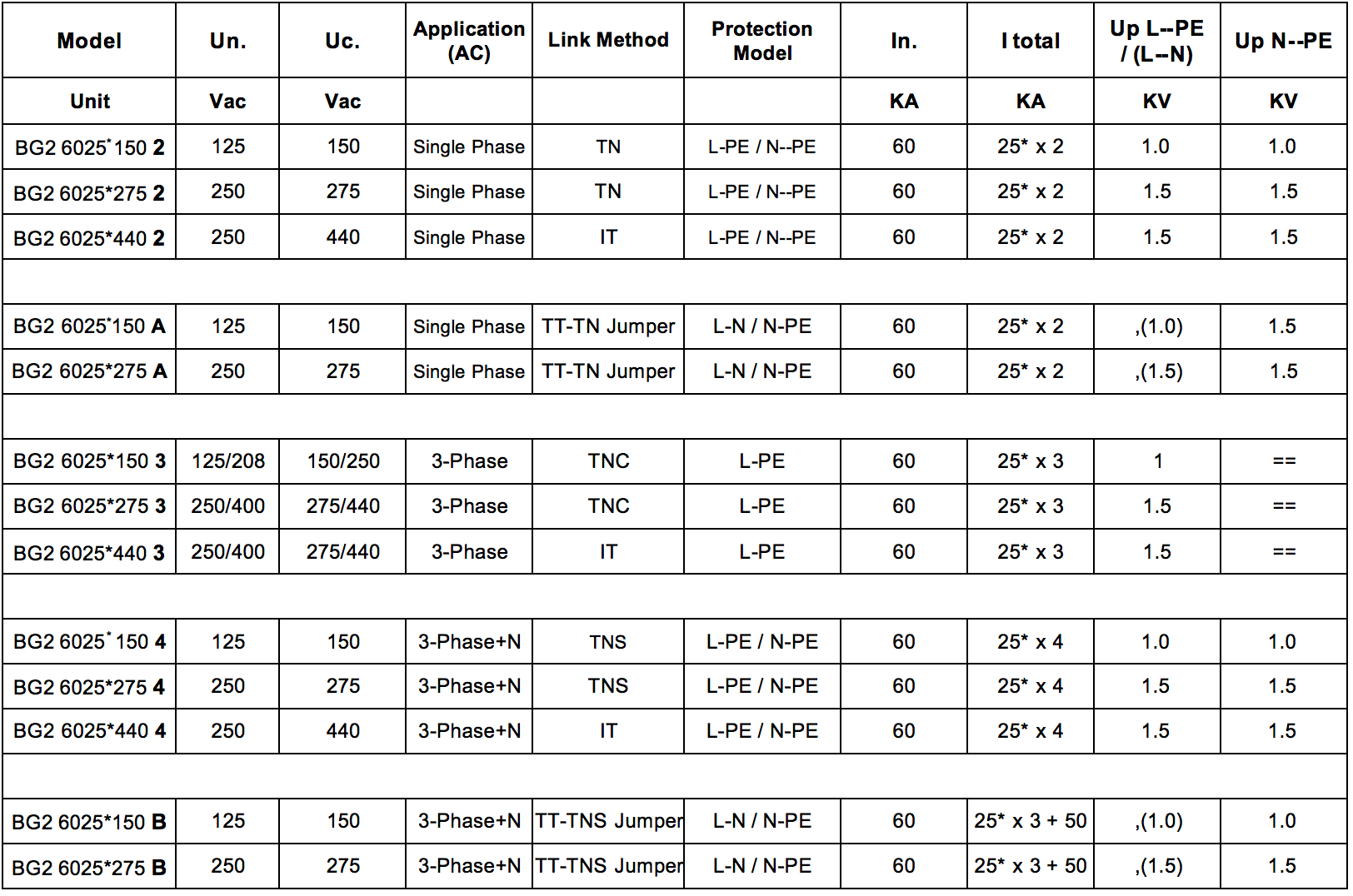

2. Specifications

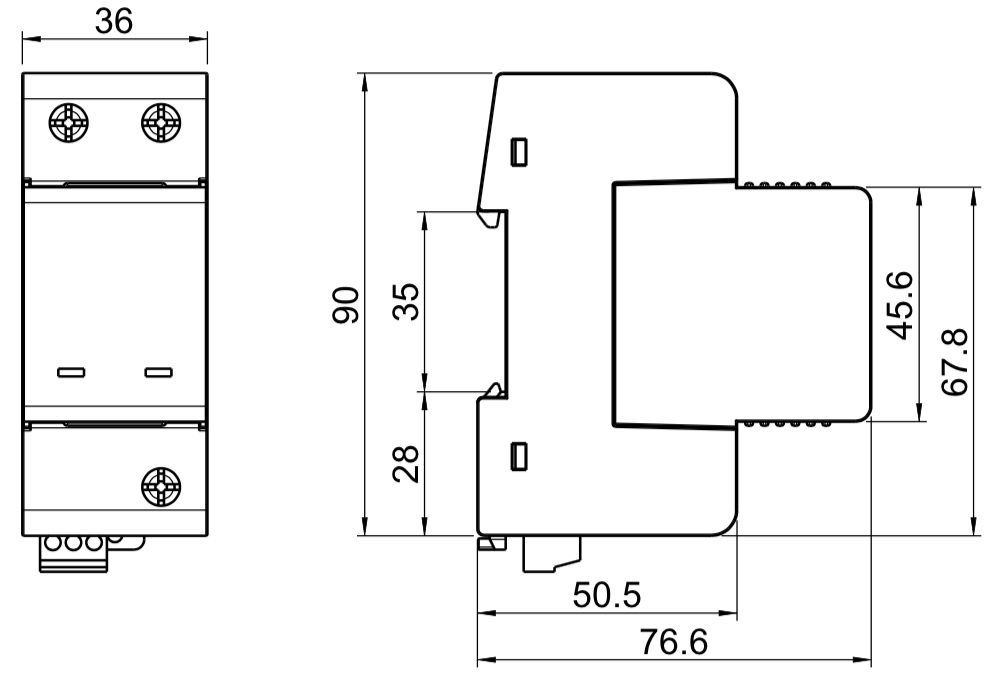

3. Dimensions
4. Schematic Diagram
? ? ?See Datasheet
