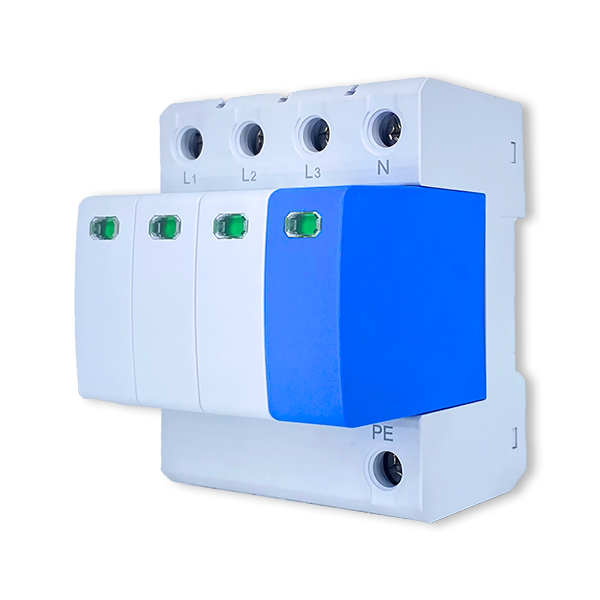

D3 Series
For AC System
Network Configurations: 1 / 2 / 3 / 4 / 1+1 / 3+1 / 1+1Jumper / 3+1Jumper
Core Element: MOV 34S
Surge(T1+T2): In:20kA/Imax:60kA(8/20us) / Iimp7.5kA*(10/350us)
Surge(T2): 20/40kA or 30/60kA(8/20us)
Types: 241k / 431k / 711k / 911k / 122k

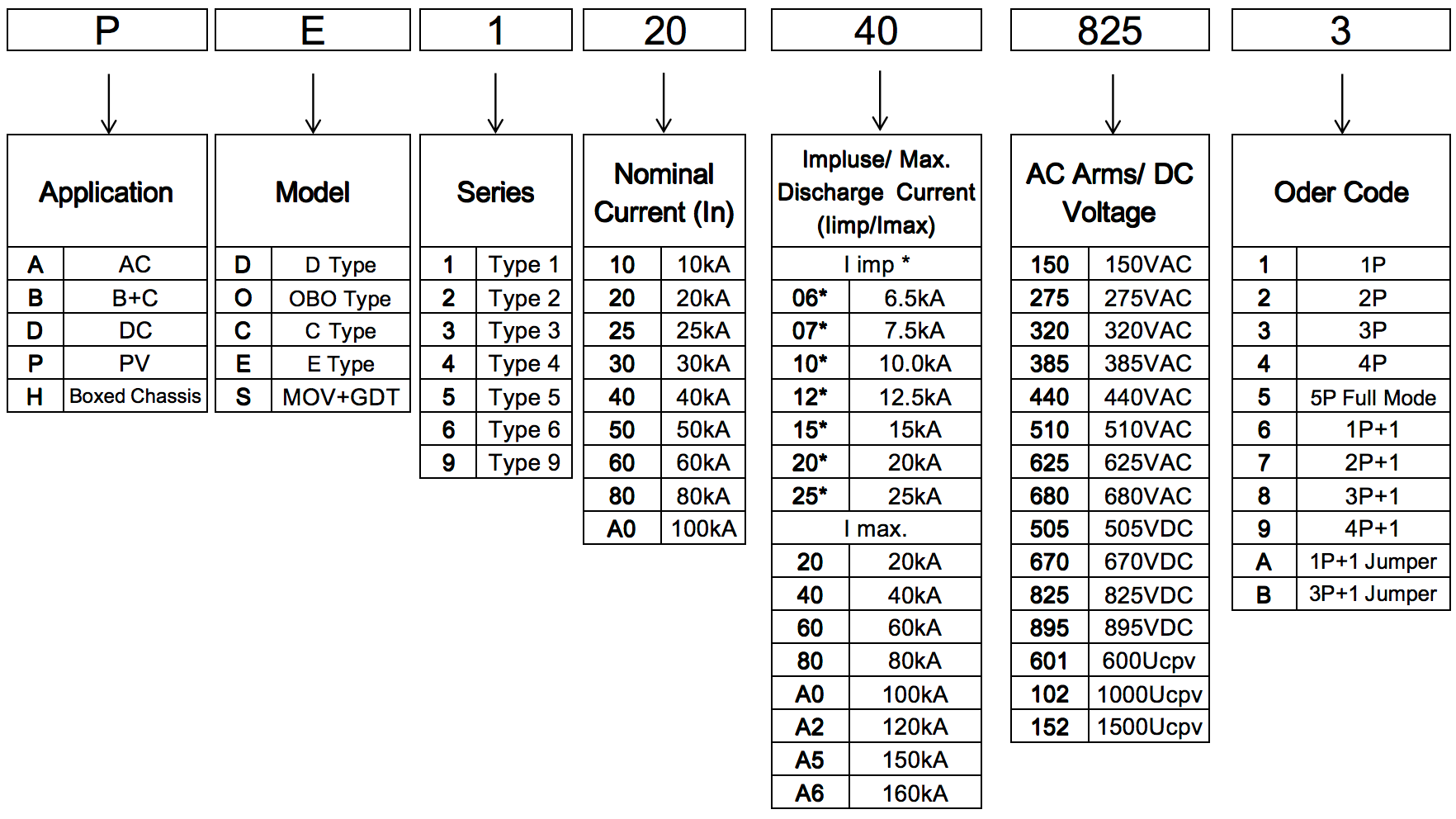

1. Part Number Code

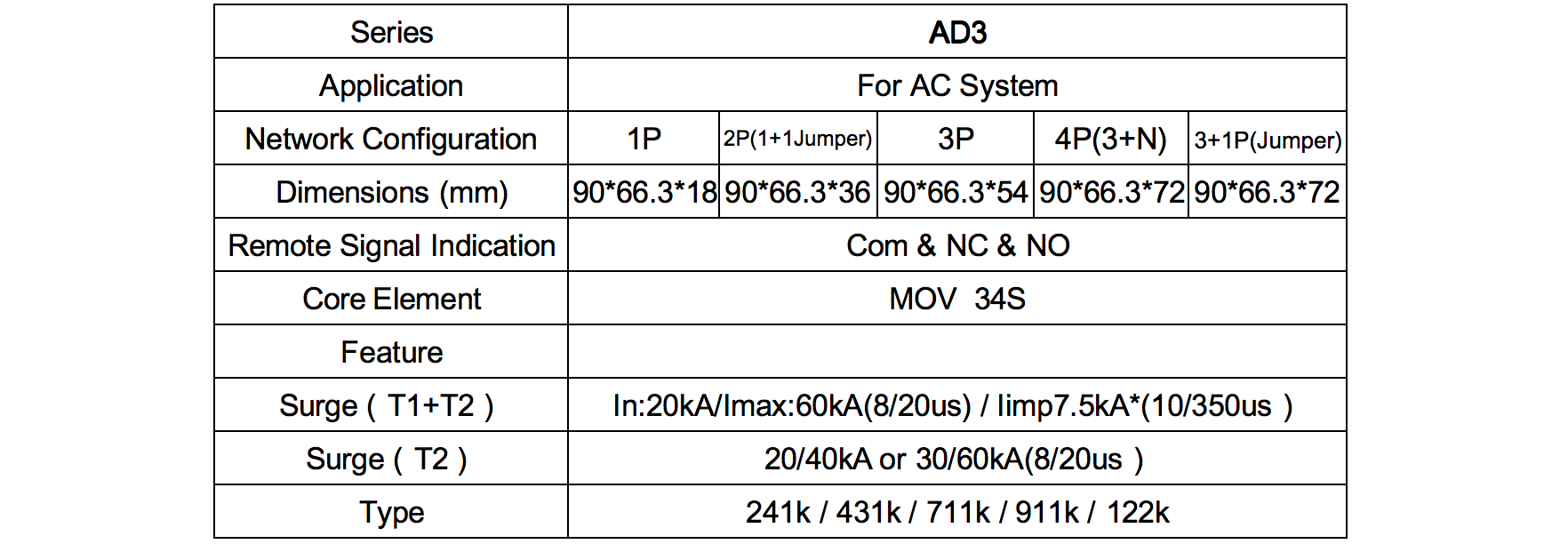

2. Product Specifications

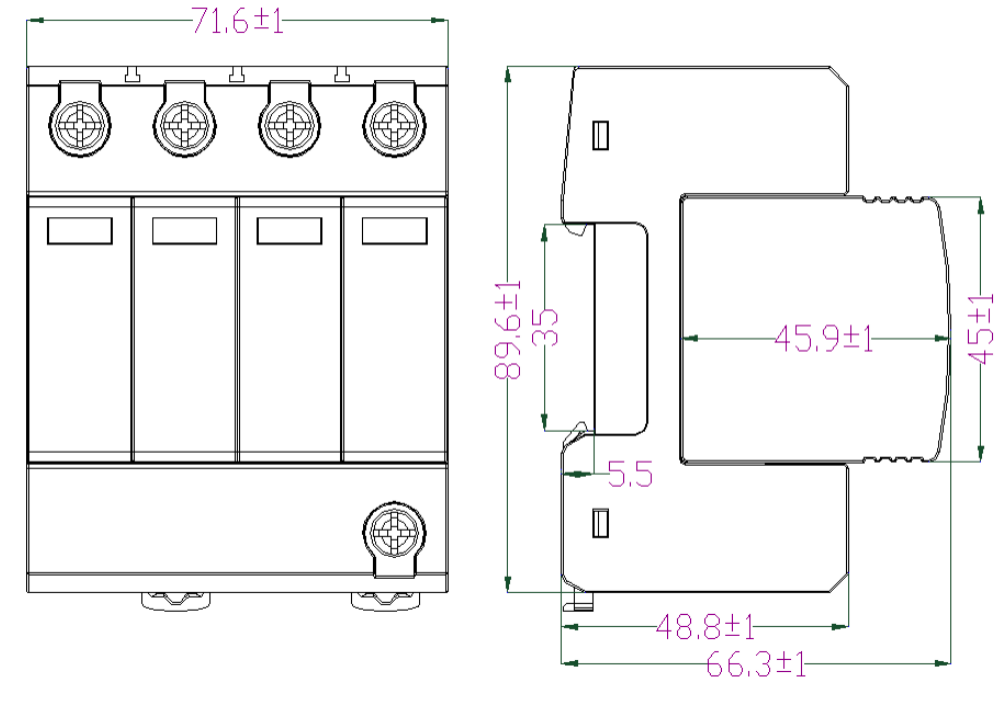

3. Dimensions

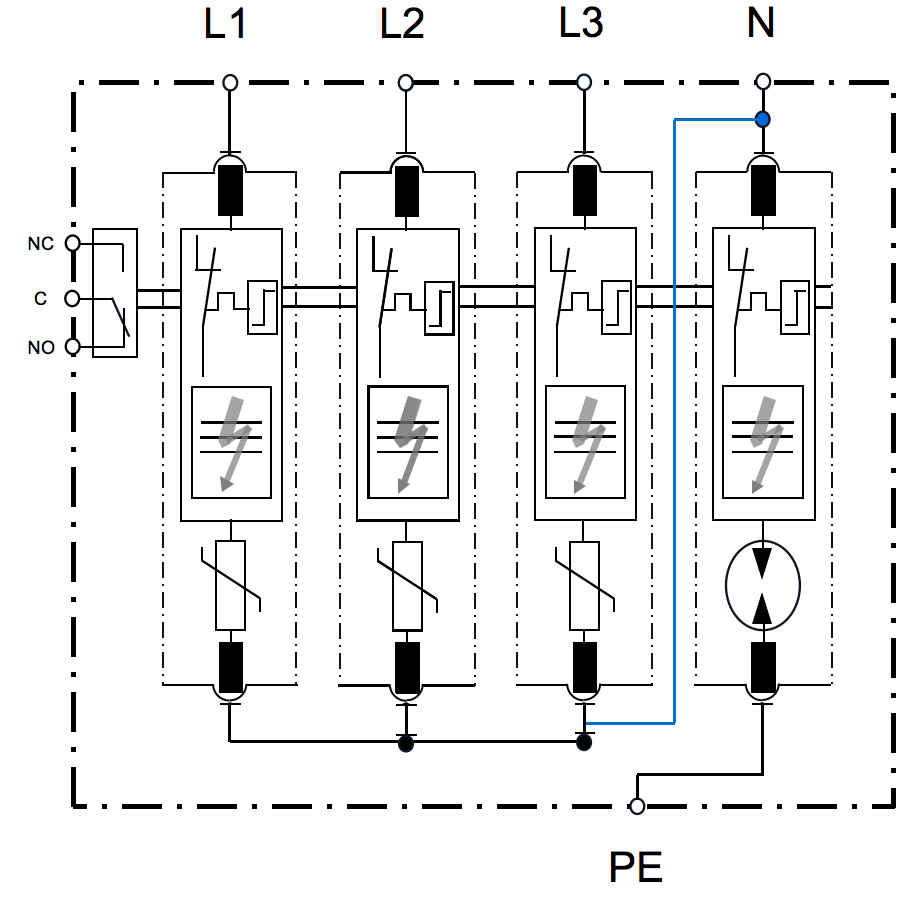

4. Schematic Diagram
