Product classification

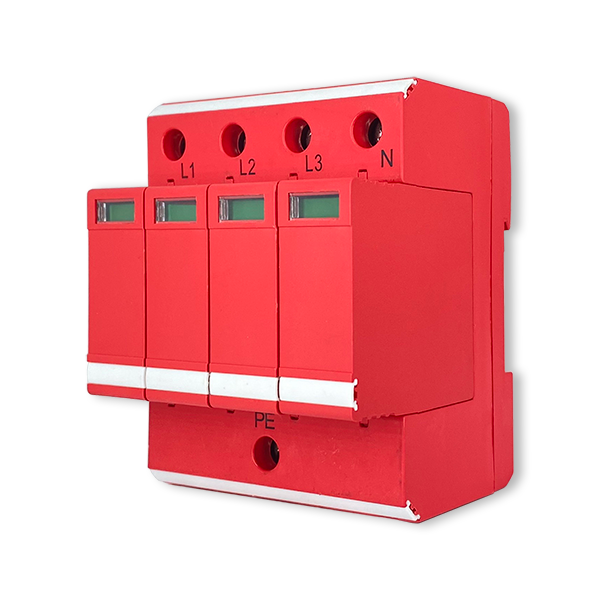

D5 Series
For AC System
High Discharge Current
Network Configurations: 1P、2P、3P、4P、3+NPE
Core Element：MOV 34S
Surge(T1+T2): 20/40kA (8/20us) / 5kA(10/350us)
Surge(T2): 20kA/ 40kA (8/20us)

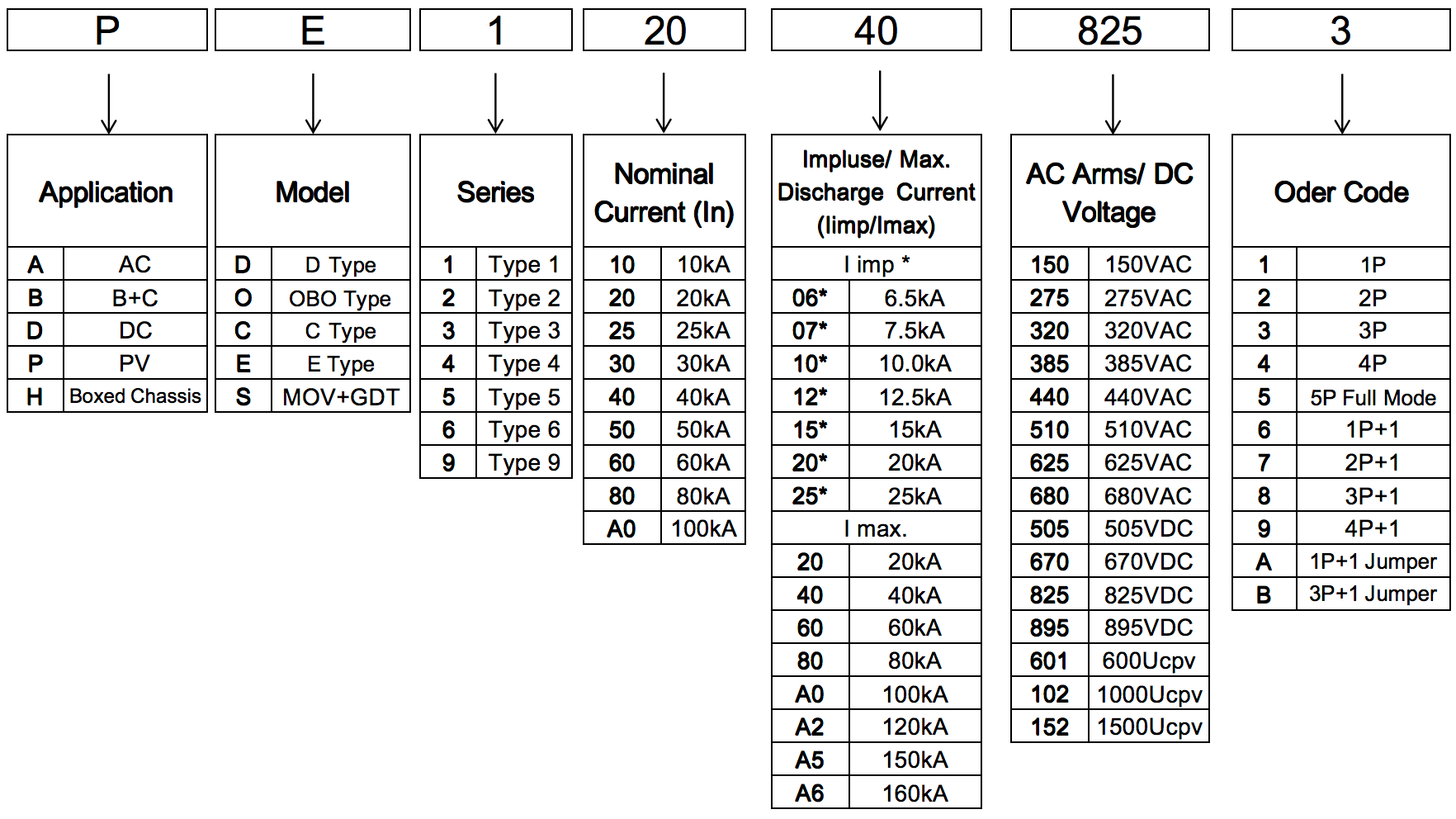

1. Part Number Code

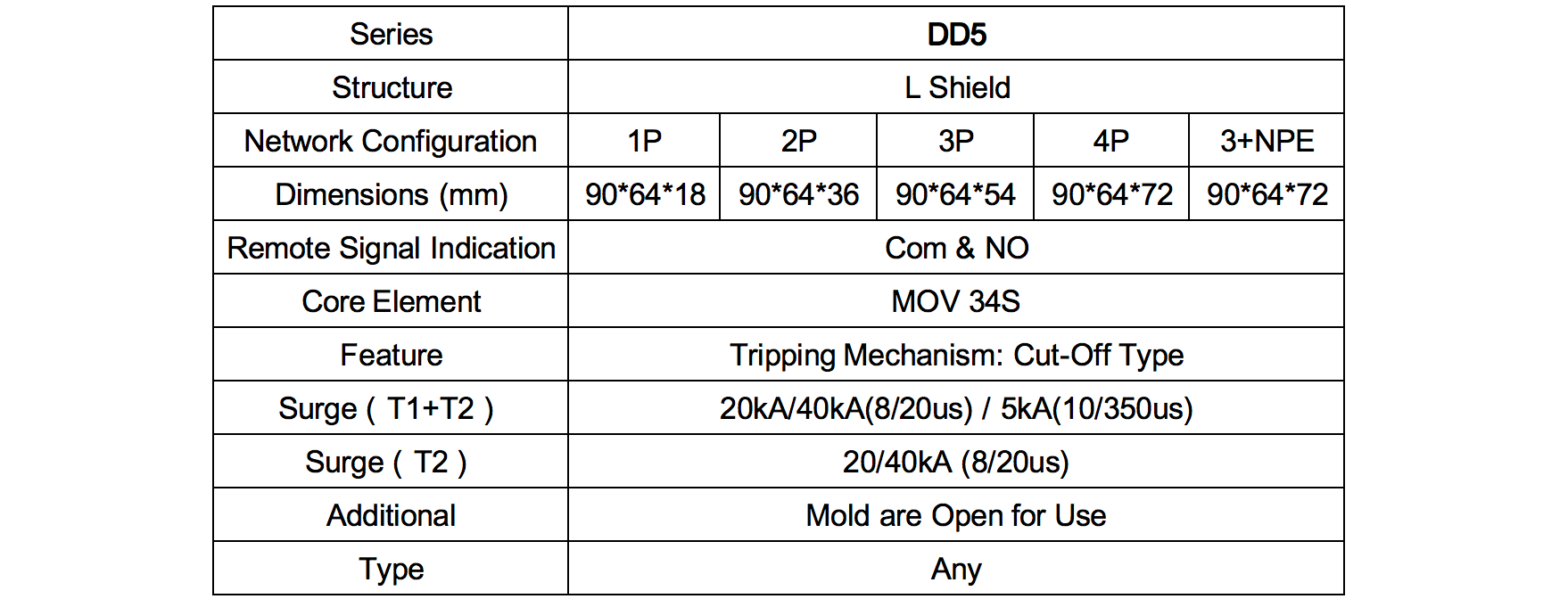

2. Product Specifications

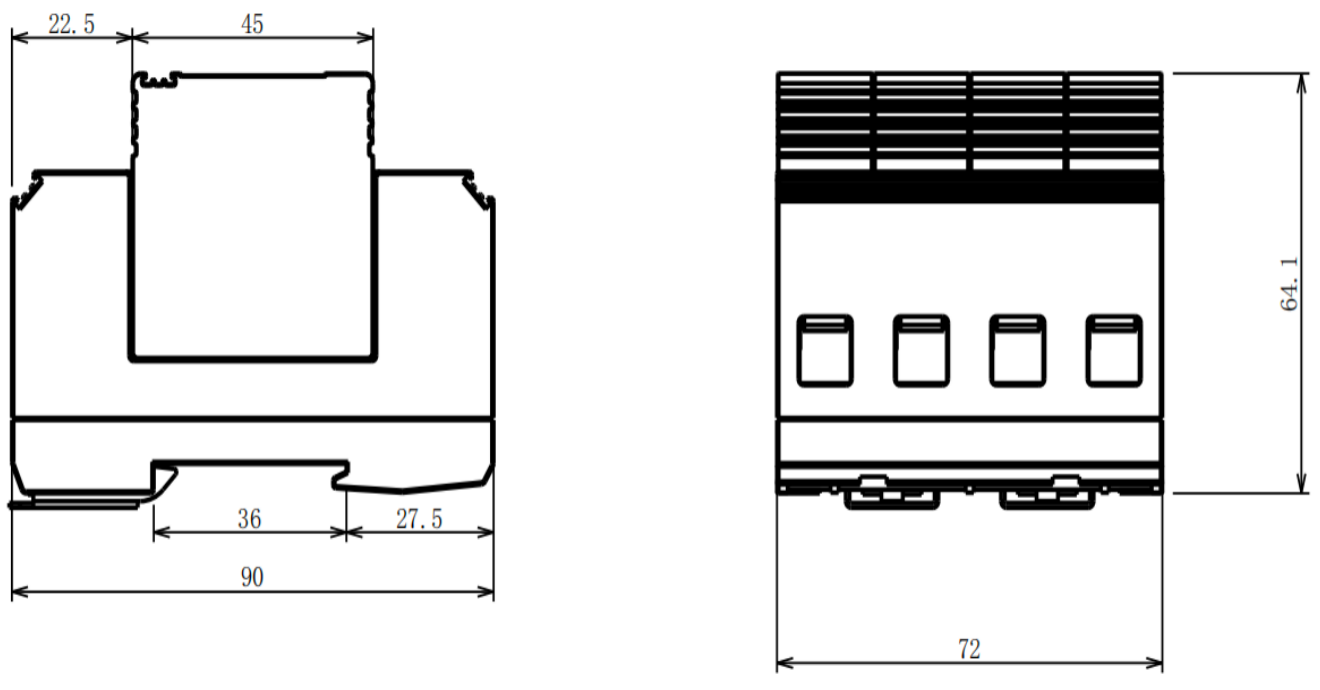

3. Dimensions

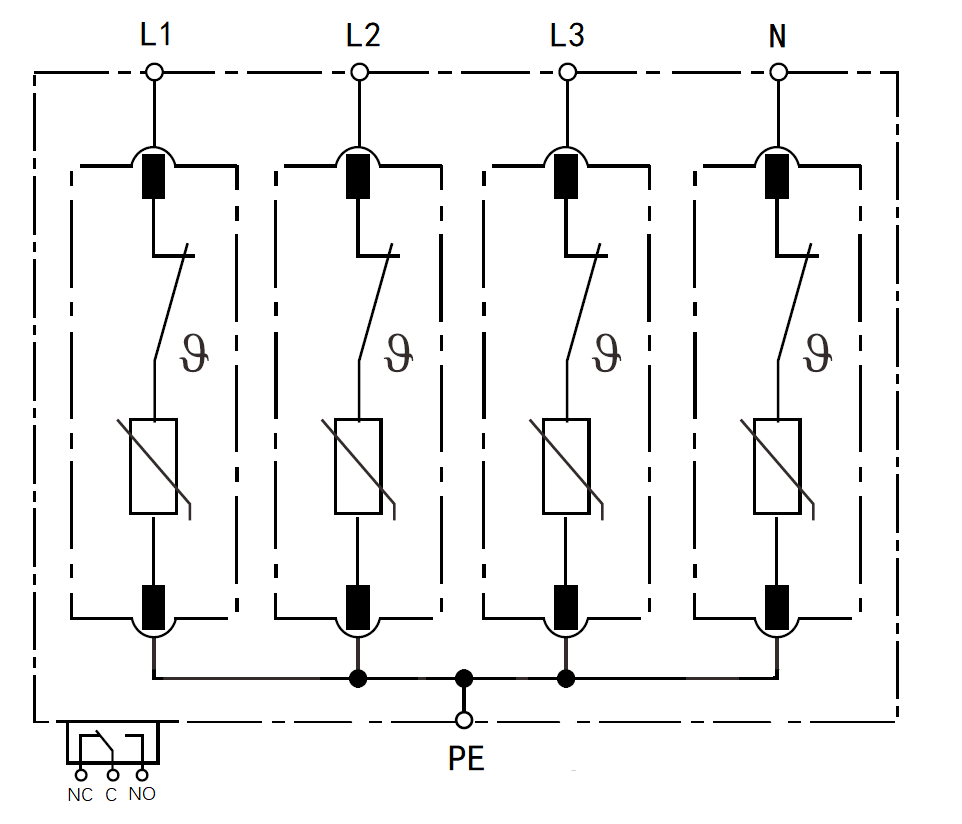

4. Schematic Diagram
